Açıklama

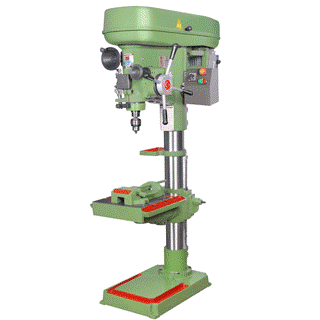

Şenel M32-D1 Sütunlu Matkap Tezgahı
Column Drill Bench 32mm Features
- Column Drill Bench Models
- Technical Specifications: M32-K1 M32-D1
- tapping + drilling hole drilling
- single cycle single cycle
- Max drilling diameter (mm) 32 32
- Max tap (threading) diameter 24 –
- Engine power (kw) 1.5 1.5
- Engine output speed (rpm) 1400 1400
- Spindle speed-standard machine (rpm) 125-1250 (4) 125-1250 (4)
- Dimensions(width-length-height)(mm) 600x1000x1920 600x1000x1920
- Weight (kg) 440 440
- Spindle end – table max-min (mm) 1235 1235
- Spindle max vertical travel (mm) 140 140
- Including chuck included
- Spindle taper 4MK-B18 4MK-B18
